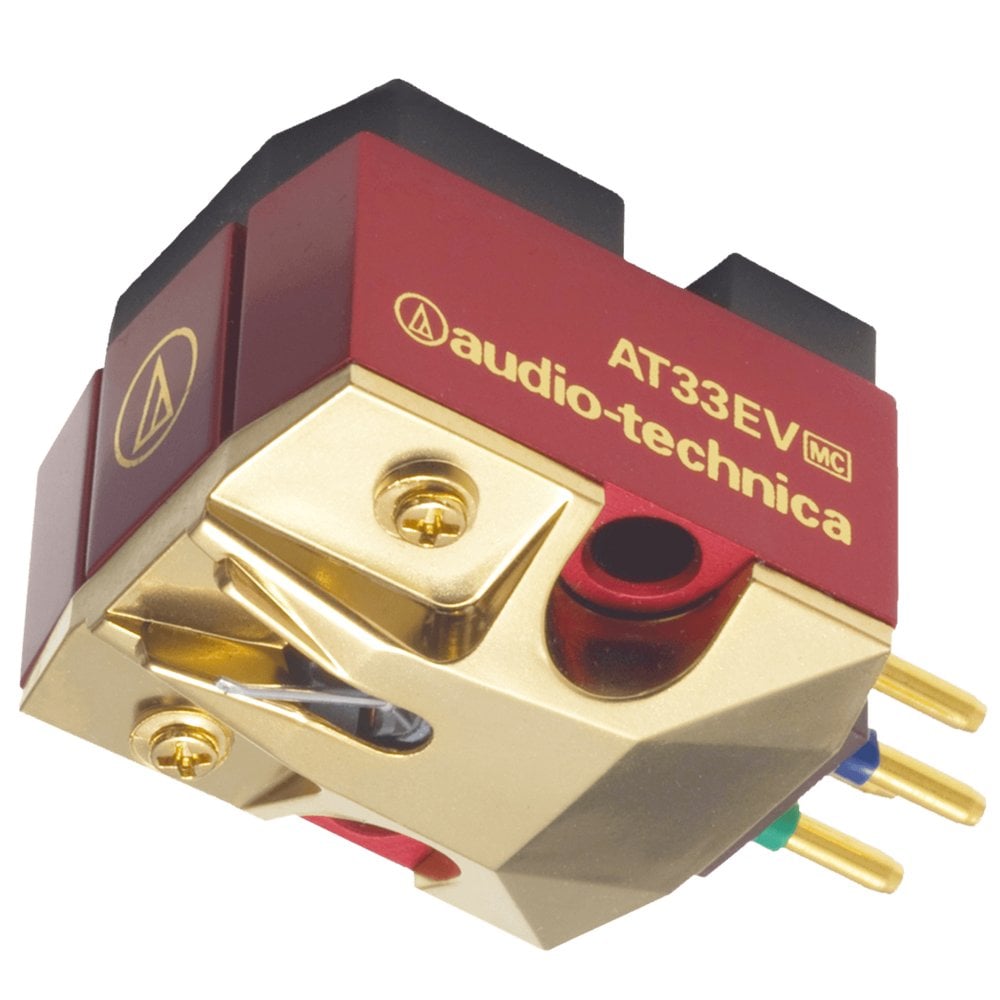

Audio-Technica AT33EV Moving Coil Cartridge

Code: AT33EV
  • £430.00
  • (FREE UK Delivery)
| Usually dispatched within 24 hours
AT33EV Moving Coil Cartridge. Elliptical stylus chip and durable duralumin tapered pipe cantilever, dramatically increased magnetism with neodymium magnets and PCOCC and high separation, wide-response dual moving coil.
Key Features:
  • Elliptical stylus chip and durable duralumin tapered pipe cantilever
  • 10O mid impedance specifications
  • Dramatically increased magnetism with neodymium magnets and PCOCC as the coil
  • High separation, wide-response dual moving coil
  • VC Mold eliminates unnecessary vibrations
  • "Hanenite" anti-vibration rubber eliminates unwanted vibrations
The A33EV is a ½ inch, standard mount 0.3 x 0.7 mil elliptical cartridge featuring a tapered Duralumin cantilever which reduces the effective mass of the cartridge, resulting in a more durable cantilever. The Dual Moving Coil cartridge design increases channel separation and extends the frequency response range delivering extraordinary audio quality. Internally constructed with a neodymium magnet enhances magnetic energy and PCOCC wire for pure audio transmission.
Technical Specifications:
  • Frequency Response: 15 - 50,000Hz
  • Channel Separation: 30dB (1kHz)
  • Vertical Tracking Angle: 23°
  • Stylus Construction: Nude Square Shank
  • Recommended Load Impedance: More than 100Ω (when head amp connected)
  • Coil Impedance: 10Ω (1kHz)
  • DC Resistance: 10Ω
  • Coil Inductance: 22µH (1kHz)
  • Output Voltage: 0.3mV (1kHz and 3.54cm/sec.)
  • Output Channel Balance: 0.5dB (1kHz)
  • Stylus Shape: Elliptical
  • Cantilever: Duralumin
  • Static Compliance: 40×10-6cm/dyne
  • Dynamic Compliance: 10×10-6cm/dyne (100Hz)
  • Mounting: 1/2" Centers
  • Dimensions: H16×W16.6×D26.5mm
  • Accessories Included: Non-magnetic screwdriver × 1, Washer × 2, Protector × 1, Cartridge installation screws 13 mm × 2 and 19 mm × 2, Nut × 2, Brush × 1, PCOCC lead set × 1
  • Body Material: Aluminium/Synthetic Resin
  • Stylus Curvature Radius: 0.3 x 0.7 mil
  • Terminal Pins: Brass
  • Type: Dual Moving Coil
  • Weight: 6.9g
