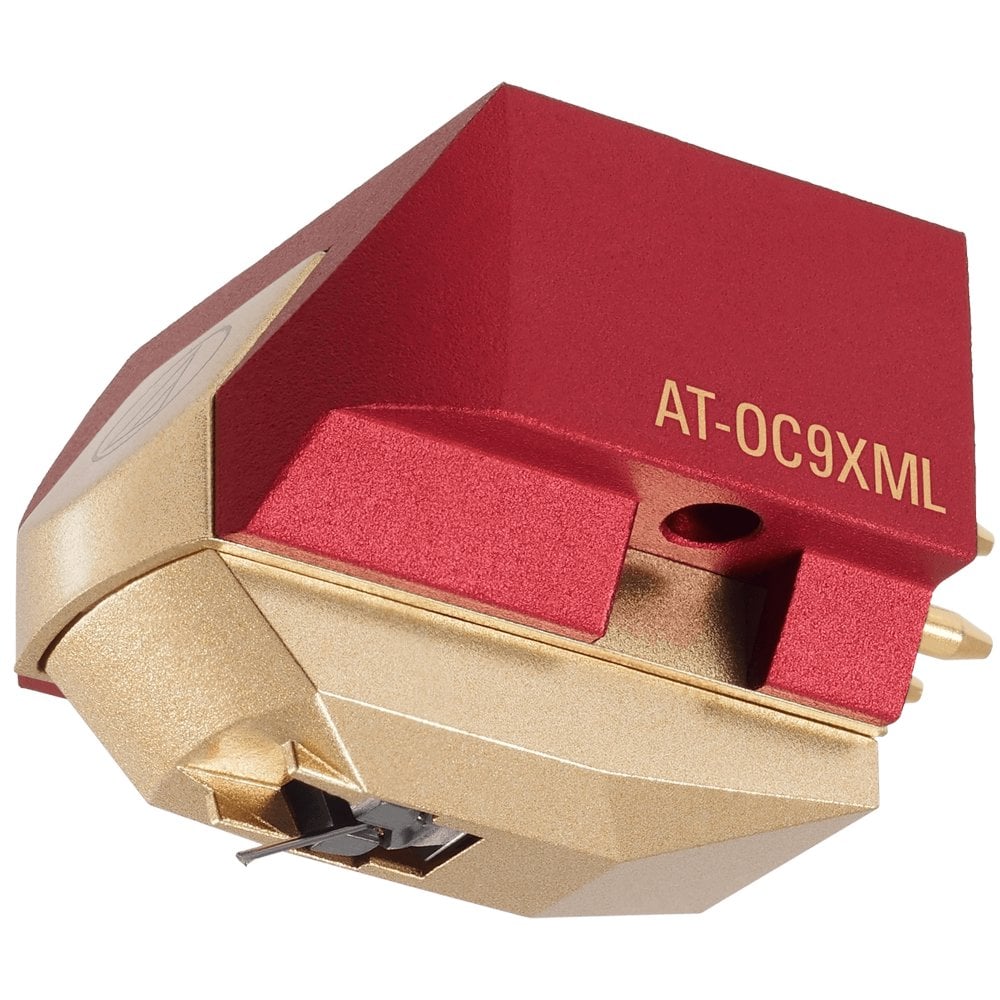

Audio-Technica AT-OC9XML Moving Coil Cartridge

Audio-Technica AT-OC9XML Moving Coil Cartridge

Code: AT-OC9XML
  • £509.99
  • (FREE UK Delivery)
  |   Usually dispatched within 24 hours
Loading...
AT-OC9XML Dual moving coil stereo cartridge with Microlinear stylus - Features nude Microlinear stylus and boron cantilever, neodymium magnet and permendur yoke for increased magnetic energy and features threaded inserts in the cartridge body.

Key Features:
  • Features nude Microlinear stylus and boron cantilever which provides lower distortion and high transient response
  • A neodymium magnet and permendur yoke provides dramatically increased magnetic energy
  • Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
  • Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
  • Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer
Ask A Question
Tell A Friend
Add To Compare
Since its introduction more than 30 years ago, Audio-Technica’s pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. Microlinear complex diamond profile enabling higher frequency response, detail like never before experienced and limiting inner groove distortion. Microlinear diamond profile provides low record and stylus wear.

Technical Specifications:
  • Frequency Response: 20 - 47,000 Hz
  • Channel Separation: 27 dB (1 kHz)
  • Vertical Tracking Angle: 20 degrees
  • Stylus Construction: Nude square shank
  • Recommended Load Impedance: Min 100 Ohms
  • Coil Impedance: 12 Ohms (1 kHz)
  • DC Resistance: 12 Ohms
  • Coil Inductance: 25 μH (1 kHz)
  • Output Voltage: 0.4 mV (@ 1 kHz, 5 cm/sec)
  • Output Channel Balance: 1.0 dB (1 kHz)
  • Stylus Shape: Microlinear
  • Cantilever: 0.28 mm Ø nude boron
  • Static Compliance: 20 x 10 – 6 cm / dyne
  • Dynamic Compliance: 16 x 10 – 6 cm / dyne (100 Hz)
  • Mounting: 1/2” centers / Threaded
  • Cartridge Weight: 7.6 g
  • Dimensions: 17.3 (H) x 16.8 (W) x 25.7 (L) mm
  • Accessories Included: 1 non magnetic screw driver / 1 brush / 2 washers / 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm / 1 plastic protector
  • Body Material: Aluminium
  • Model: AT-OC9XML
  • Stylus Size: 2.2 x 0.12 mil
  • Terminal Pins: Brass
  • Wire Used for Coil: PCOCC (Copper by Ohno Continuous Casting process.)
