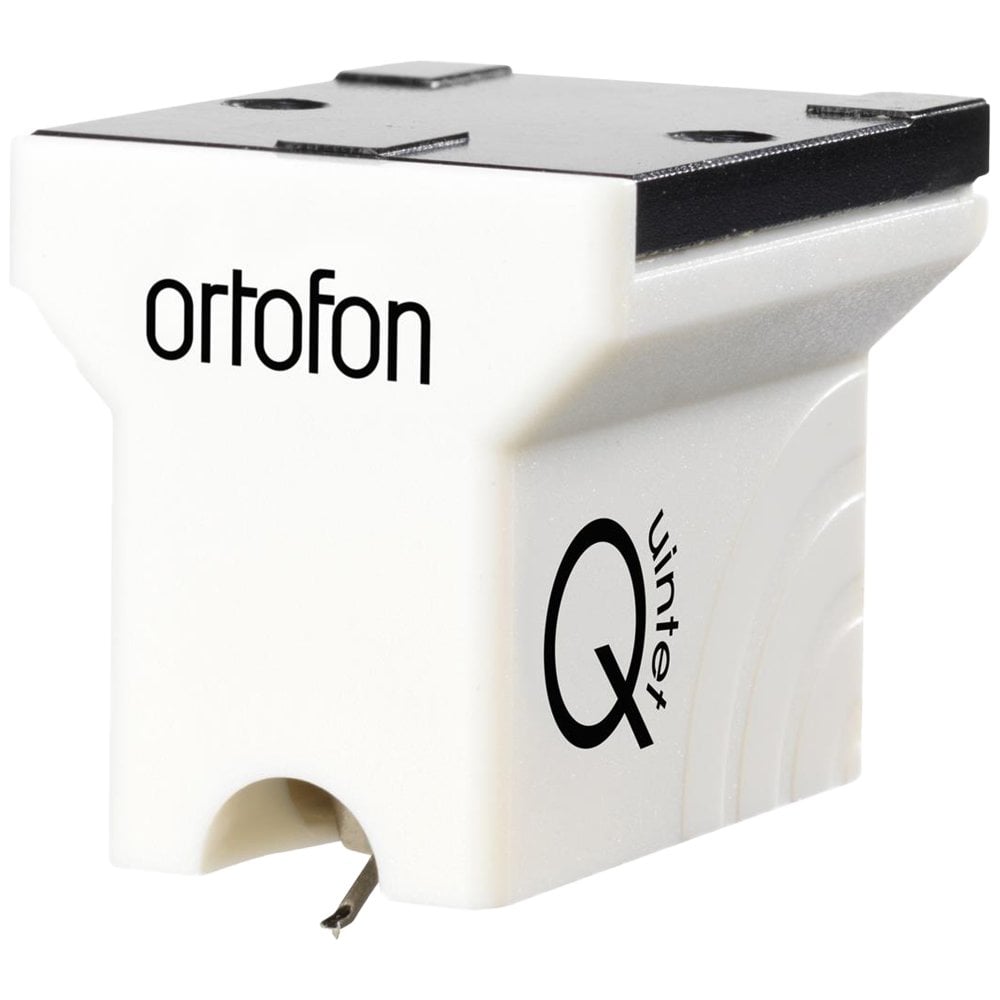

Ortofon Quintet Mono Moving Coil Cartridge - Exchange

Code: OQM-EX
  • £321.30
  • (FREE UK Delivery)
  |   Usually dispatched within 24 hours
Loading...

This product requires your old Ortofon Quintet Mono Moving Coil Cartridge to be sent to us for exchange.

Please send your cartridge with your order web reference to:
HiFiSound
Castlegate Mill
Quayside
Stockton on Tees
TS18 1BZ

Quintet Mono features Nude Elliptical r/R 8/18μm stylus that is a good solution for playing mono microgroove vinyl records. The Quintet Mono will track perfectly through even worn and damaged records and ensure the surface noise control. Quintet Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

Technical Specifications:
  • Output Voltage (at 1kHz, 5cm/sec): 0.3mV
  • Frequency Range (at -3dB): 20Hz - 25kHz
  • Frequency Response 20Hz - 20kHz: ¬± 2.0dB
  • Tracking Ability at 315Hz: 70Œºm
  • Compliance, Dynamic, Lateral: 15Œºm / mN
  • Stylus Type: Nude Elliptical
  • Stylus Tip Radius r / R: 8 / 18Œºm
  • Tracking Force Range: 2.1 - 2.5g (21 - 25mN)
  • Recommended Tracking Force: 2.3g (23mN)
  • Tracking Angle: 20¬∫
  • Internal Impedance / DC Resistance: 5Œ©
  • Recommended Load Impedance: >20Œ©
  • Cartridge Body Material: ABS/Alu.
  • Cartridge Colour: White
  • Cartridge Weight: 9g
