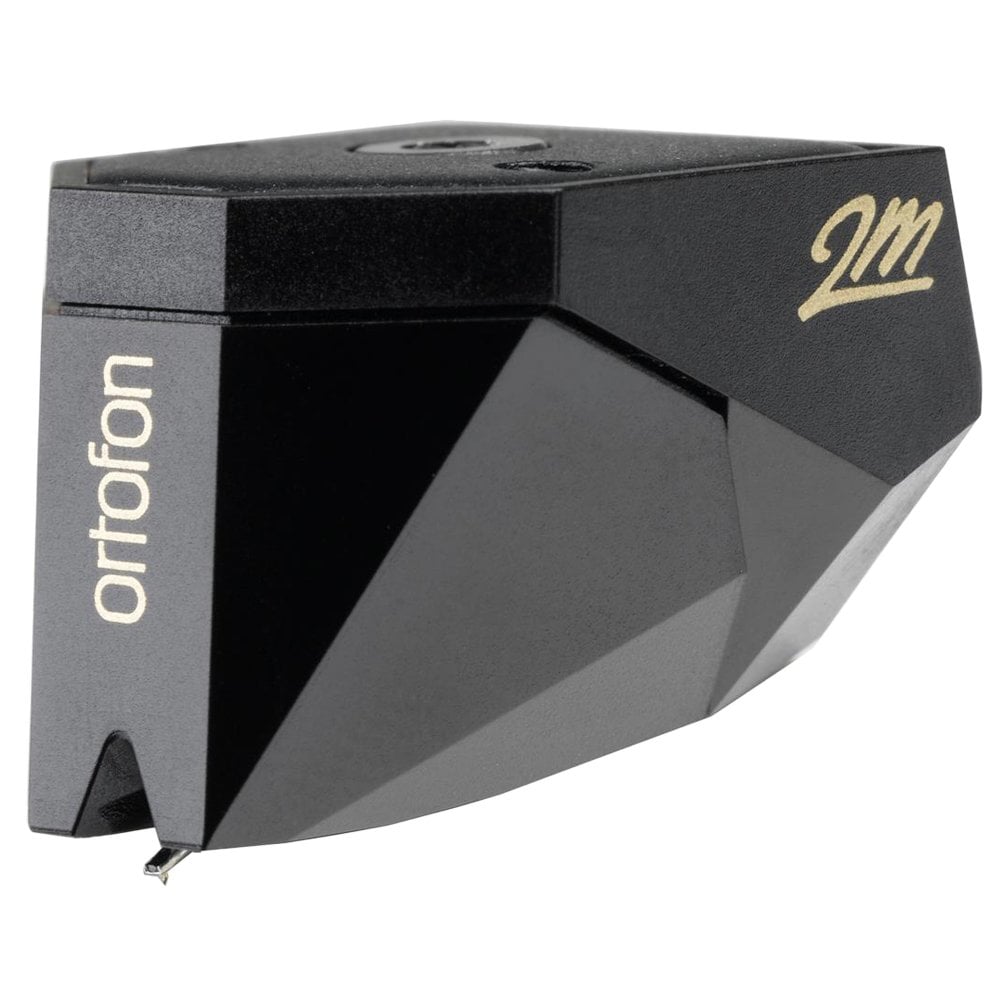

Ortofon 2M Black Moving Magnet Cartridge

Ortofon 2M Black Moving Magnet Cartridge

Code: O2MBLACK
  • From £499.00
  • (FREE UK Delivery)
  |   Usually dispatched within 24 hours
Loading...

The 2M Black is the new moving magnet flagship from Ortofon. The 2M black is graced with a Shibata diamond stylus - the same diamond as on the acclaimed MC Jubilee. Its slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the most high-frequency groove information. Users of the 2M Black will enjoy the benefit of impeccable sound quality, along with reduced record & stylus wear, and reduced distortion and phase error as a result of the diamond’s improved tracking geometry.

Key Features:

  • Improved engine, which provides an output of 5.5mV
  • Optimised sound reproduction and high level of sonic accuracy
  • Nude Shibata diamond, which is particularly suited for demanding applications
  • Special upgraded 2M cartridge body, featuring split pole pins with a silver plated copper wire
  • Split pole pins with a copper wire
  • All-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth
  • Supplied with 2 different sets of screws (M2.5 x 5 & M2.5 x 7)
  • Stylus brush included
  • Premounted version is mounted on our popular SH-4 Black headshell
  • Premounted version is easily and directly mountable on S-shaped tonearms with universal mount.
  • Correct Baerwald alignment with tonearms with universal mount.

2M Verso:

The 2M series of cartridges are now also available in a special version, suited for bottom-mount tonearms.

2M Premounted:

The 2M Premounted is a practical and elegant solution for those who require direct and easy mounting on their S-shaped tonearm. The quality of the SH-4 headshell is sturdy and rigid, yet the design emphasises a slim and delicate form factor with a long finger lift that is easy to pick up.

2MR (Reduced):

The "R" stands for “Reduced” and relates to the lower cartridge body height. This is suited to certain types of tonearms from manufacturers such as Pro-Ject, Linn and Rega, to achieve the correct VTA.

Ask A Question
Tell A Friend
Add To Compare

The cartridge body used for the 2M Bronze and 2M Black is manufactured from a newly-developed Noryl plastic/glass combination, a revolutionary material which ensures high rigidity while eliminating unwanted resonances. The 2M Bronze and 2M Black use a special upgraded engine, featuring split pole pins with a silver-plated copper wire.

Technical Specifications:

  • Output Voltage (at 1kHz, 5cm/sec): 5mV
  • Channel Balance at 1kHz: 1dB
  • Channel Separation at 1kHz: 26dB
  • Channel Separation at 15kHz: 1-5dB
  • Frequency Range (at -3dB): 20Hz - 31kHz
  • Frequency Response 20Hz - 20kHz: +2 / -0dB
  • Tracking Ability at 315Hz: Typically 80μm
  • Compliance, Dynamic, Lateral: 22μm / mN
  • Stylus Type: Nude Shibata
  • Stylus Tip Radius r / R: 6 / 50μm
  • Tracking Force Range: 1.4 - 1.7g (14 - 17mN)
  • Recommended Tracking Force: 1.5g (15mN)
  • Tracking Angle: 20º
  • Internal Impedance / DC Resistance: 1.2kΩ
  • Internal Inductance: 630mH
  • Recommended Load Resistance: 47kΩ
  • Recommended Load Capacitance: 150 - 300pF
  • Cartridge Colour Body / Stylus: Black / Black
  • Cartridge Weight: 7.2g
  • Weight Premounted on SH-4: 16.7g
  • Replacement Stylus Unit: Stylus 2M Black
  • Accessories: 1 x Stylus Brush (Carbon Fibre) / 1 x Screwdriver / 2 x Screw M2.5 x 5/ 2 x Screw M2.5 x 7 / 1 x Stylus Pressure Gauge
