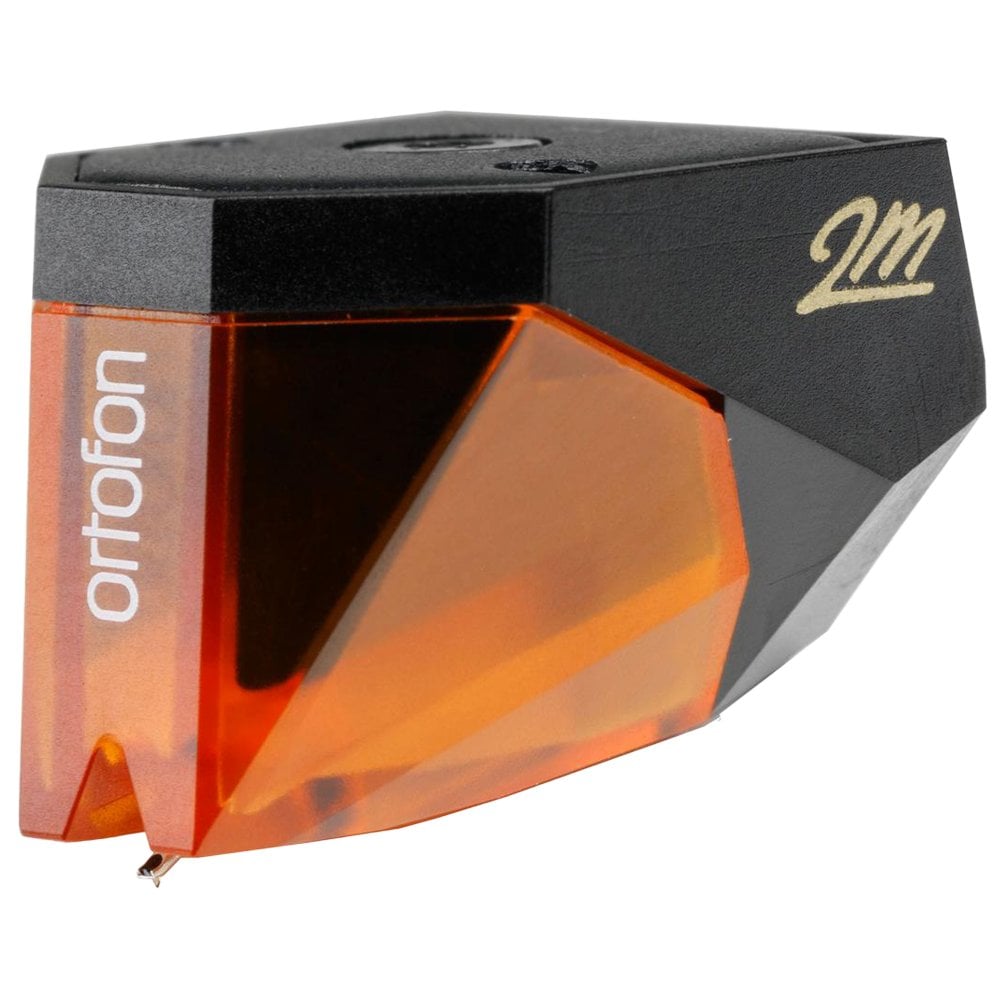

Ortofon 2M Bronze Moving Magnet Cartridge

Ortofon 2M Bronze Moving Magnet Cartridge

Code: O2MBRONZE
  • From £339.00
  • (FREE UK Delivery)
  |   Usually dispatched within 24 hours
Loading...

The 2M Bronze features a nude Fine Line diamond stylus, which is particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally, its larger footprint ensures reduced distortion and record wear.

Key Features:

  • Improved engine, which provides an output of 5.5mV
  • Optimised sound reproduction and high level of sonic accuracy
  • Nude Fine Line diamond, which is particularly suited for demanding applications
  • Special upgraded 2M cartridge body, featuring split pole pins with a silver plated copper wire
  • Split pole pins with a copper wire
  • All-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth
  • Supplied with 2 different sets of screws (M2.5 x 5 & M2.5 x 7)
  • Stylus brush included
  • Premounted version is mounted on our popular SH-4 Black headshell
  • Premounted version is easily and directly mountable on S-shaped tonearms with universal mount.
  • Correct Baerwald alignment with tonearms with universal mount.

2M Verso:

The 2M series of cartridges are now also available in a special version, suited for bottom-mount tonearms.

2M Premounted:

The 2M Premounted is a practical and elegant solution for those who require direct and easy mounting on their S-shaped tonearm. The quality of the SH-4 headshell is sturdy and rigid, yet the design emphasises a slim and delicate form factor with a long finger lift that is easy to pick up.

2MR (Reduced):

The "R" stands for “Reduced” and relates to the lower cartridge body height. This is suited to certain types of tonearms from manufacturers such as Pro-Ject, Linn and Rega, to achieve the correct VTA.

Ask A Question
Tell A Friend
Add To Compare

The cartridge body used for the 2M Bronze and 2M Black is manufactured from a newly-developed Noryl plastic/glass combination, a revolutionary material which ensures high rigidity while eliminating unwanted resonances. The 2M Bronze and 2M Black use a special upgraded engine, featuring split pole pins with a silver-plated copper wire.

2M cartridges are designed for precise and accurate retrieval of the information in the record groove. Ortofon's philosophy is to play the record sound as accurately as possible, without colouring the sound in any way. Both the 2M Bronze and 2M Black have diamonds which are cut and polished to the highest standards of the industry.

The 2M design has also been optimized for easy mounting on to a tonearm; the weight and size of all 2M models is well-suited to fit the most common turntables on today's market. The 2M Bronze and 2M Black also have interchangeable stylus units, and replacement styli are readily available from ourselves. The a2M range has been structured in the same way as the popular Rondo and Cadenza Moving Coil series, with ascending quality as you move from Red - Blue - Bronze - Black. The spectacular 2m Black has become the flagship of 2M, and all Ortofon moving magnet cartridges.

Technical Specifications:

  • Output Voltage (at 1kHz, 5cm/sec): 5mV
  • Channel Balance at 1kHz: 1dB
  • Channel Separation at 1kHz: 26dB
  • Channel Separation at 15kHz: 15dB
  • Frequency Range (at -3dB): 20Hz - 29kHz
  • Frequency Response 20Hz - 20kHz: +2 / -0dB
  • Tracking Ability at 315Hz: Typically 80μm
  • Compliance, Dynamic, Lateral: 22μm / mN
  • Stylus Type: Nude Fine Line
  • Stylus Tip Radius r / R: 8 / 40μm
  • Tracking Force Range: 1.4 - 1.7g (14 - 17mN)
  • Recommended Tracking Force: 1.5g (15mN)
  • Tracking Angle: 20º
  • Internal Impedance / DC Resistance: 1.2kΩ
  • Internal Inductance: 630mH
  • Recommended Load Resistance: 47kΩ
  • Recommended Load Capacitance: 150 - 300pF
  • Cartridge Colour Body / Stylus: Black / Bronze
  • Cartridge Weight: 7.2g
  • Weight Premounted on SH-4: 16.7g
  • Replacement Stylus Unit: Stylus 2M Bronze
  • Accessories: 1 x Stylus Brush / 1 x Screwdriver / 2 x Screw M2.5 x 5 / 2 x Screw M2.5 x 7 / 1 x Stylus Pressure Gauge
