Ortofon 2M Red Moving Magnet Cartridge

Ortofon 2M Red Moving Magnet Cartridge

Code: O2MRED
  • From £85.00
  • (FREE UK Delivery)
  |   Usually dispatched within 24 hours
Loading...

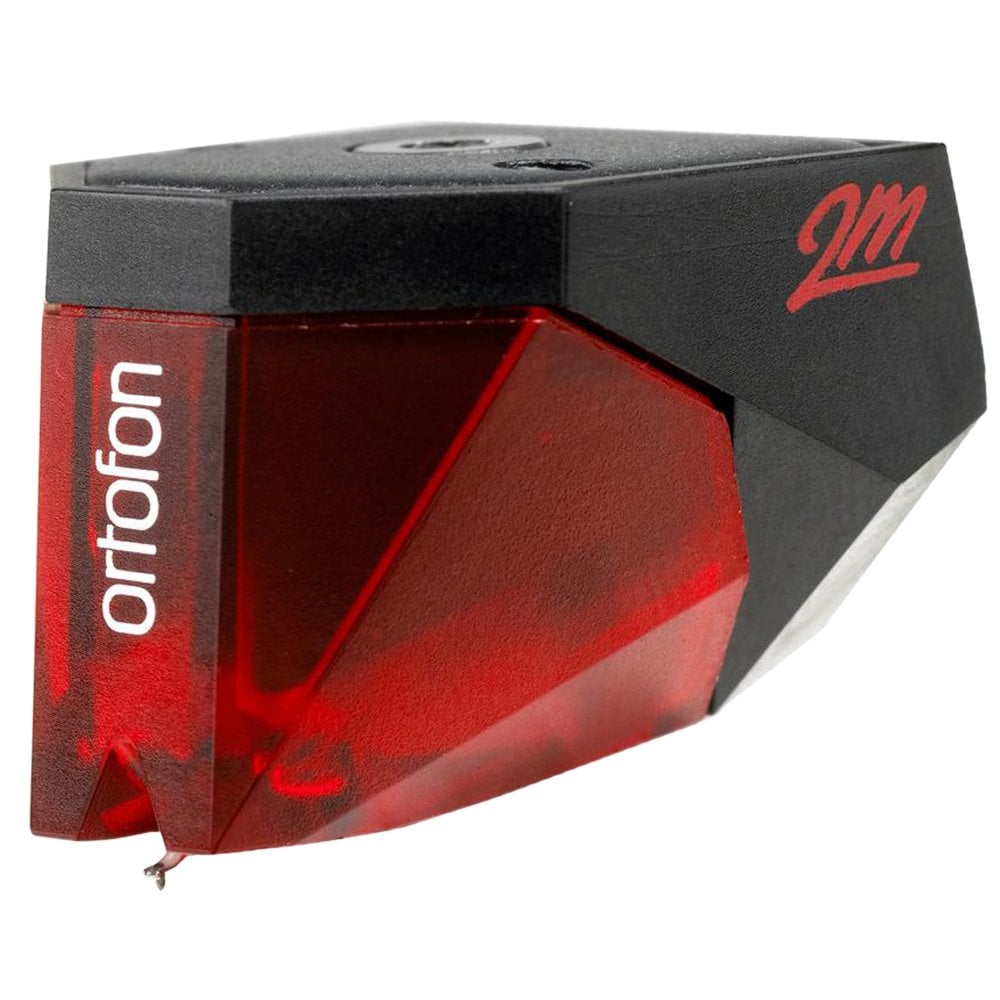

The 2M Red is designed for precise and accurate retrieval of the information in the record groove. Indeed, it is Ortofon's lasting philosophy to only ever play the recorded sound, without colouration. To obtain a flat frequency response, as with a Moving Coil cartridge, Ortofon are using split pole pins in the 2M design, to reduce the eddy current. The split pole pins are an Ortofon invention which was originally presented in the 500 and Super OM series, to great effect.

Key Features:

  • Improved engine, which provides an output of 5.5mV
  • Optimised sound reproduction and high level of sonic accuracy
  • Tipped Elliptical diamond
  • Split pole pins with a copper wire
  • All-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth
  • Supplied with 2 different sets of screws (M2.5 x 5 & M2.5 x 7)
  • Stylus brush included
  • Premounted version is mounted on our popular SH-4 Black headshell
  • Premounted version is easily and directly mountable on S-shaped tonearms with universal mount.
  • Correct Baerwald alignment with tonearms with universal mount.

2M Verso:

The 2M series of cartridges are now also available in a special version, suited for bottom-mount tonearms.

2M Premounted:

The 2M Premounted is a practical and elegant solution for those who require direct and easy mounting on their S-shaped tonearm. The quality of the SH-4 headshell is sturdy and rigid, yet the design emphasises a slim and delicate form factor with a long finger lift that is easy to pick up.

2MR (Reduced):

The "R" stands for “Reduced” and relates to the lower cartridge body height. This is suited to certain types of tonearms from manufacturers such as Pro-Ject, Linn and Rega, to achieve the correct VTA.

Ask A Question
Tell A Friend
Add To Compare
The 2M Red and 2M Blue both use the same engine with split pole pins. With this improved engine Ortofon have been able to increase the output to an impressive 5.5 mV. Both the 2M Red and 2M Blue have diamonds which are polished to the highest standards of the industry. 2M Red has a tipped elliptical diamond, and the 2M Blue has a nude elliptical diamond.

The design has been optimized for easy mounting on to a tonearm; the weight and size of all 2M models is well-suited to fit the most common turntables on today's market. The 2M Red and 2M Blue also have interchangeable stylus units, and replacement styli are readily available from ourselves.

2M was developed by Ortofon in conjunction with "Møller Jensen Design" from Copenhagen, Denmark - the same designer who collaborated on the award-winning MC Jubilee cartridge, and the coveted Kontrapunkt series. The inspiration for designing the 2M was related to the facets of the diamond - elegantly concentrating its contours against the grooves on the record surface.

Technical Specifications:
  • Output Voltage (at 1kHz, 5cm/sec): 5.5mV
  • Channel Balance at 1kHz: 1.5dB
  • Channel Separation at 1kHz: 22dB
  • Channel Separation at 15kHz: 15dB
  • Frequency Range (at -3dB): 20Hz - 22kHz
  • Frequency Response 20Hz - 20kHz: +3 / -1dB
  • Tracking Ability at 315Hz: Typically 70μm
  • Compliance, Dynamic, Lateral: 20μm / mN
  • Stylus Type: Elliptical
  • Stylus Tip Radius r / R: 8 / 18μm
  • Tracking Force Range: 1.6 - 2.0g (16 - 20mN)
  • Recommended Tracking Force: 1.8g (18mN)
  • Tracking Angle: 20º
  • Internal Impedance / DC Resistance: 1.3kΩ
  • Internal Inductance: 700mH
  • Recommended Load Resistance: 47kΩ
  • Recommended Load Capacitance: 150 - 300pF
  • Cartridge Colour Body / Stylus: Black / Red
  • Cartridge Weight: 7.2g
  • Weight Premounted on SH-4: 16.7g
  • Replacement Stylus Unit: Stylus 2M Red
  • Accessories: 1 x Stylus Brush / 1 x Screwdriver / 2 x Screw M2.5 x 5 / 2 x Screw M2.5 x 7
