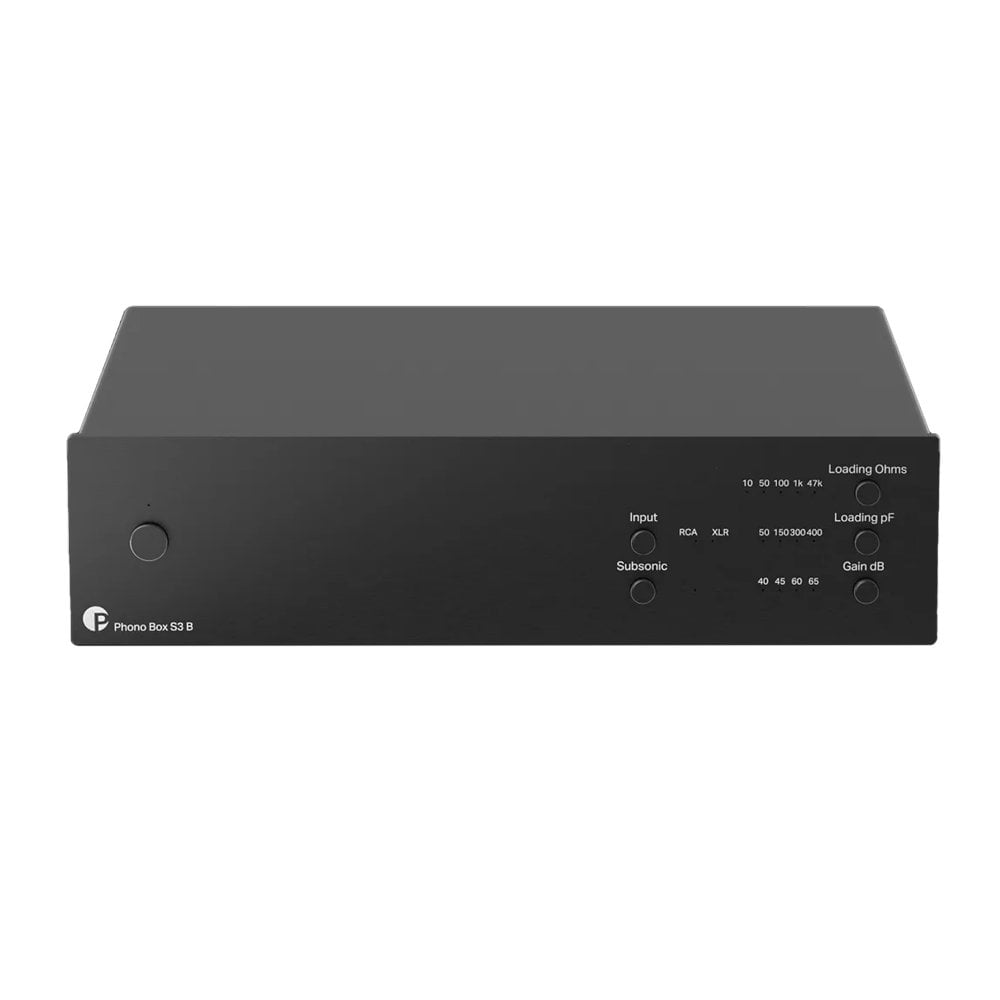

Pro-Ject Box Design Phono Box S3 B MM/MC Phono Preamplifier

The Pro-Ject design team took the decision to employ fully symmetrical and discrete circuitry in the gain stage of the Phono Box S3 B. Discrete circuits involve no operational amplifiers (op-amps), and the result is a more neutral, natural, dynamic, and vivid sound. They are more complicated to put together and involve a greater variety of components, but the result when utilised in a well-organised electrical layout is a true high-end sound.

The Phono Box S3 B is extensively customisable so suit the moving magnet or moving coil cartridge it is connected to. With five Impedance (Ω), four Capacitance (pF) and four Gain options on offer, there are very few cartridges this box of tricks cannot accommodate.

As the Phono Box S3 B is equipped with both balanced inputs and outputs, it is also part of Pro-Ject’s True Balanced Connections concept. By connecting to a turntable with a moving coil cartridge and using one of Pro-Ject’s balanced connection cables, your analogue system can benefit from increased dynamics, less noise and improved signal-to-noise ratios. Going true balanced is like hearing parts of your music that were not there before.

Technical Specifications:

• Input impedance: 10, 50, 100, 1k, 47k ohms
• Input capacitance: 50, 150, 300, 400 pF
• Gain (+ 6dB using XLR Out): 40, 45, 60, 65 dB
• SNR MM (40dB): 103dBV, 110dBV - ‚A‘ weighted
• SNR MC (60dB): 85dBV, 90dBV - ‚A‘ weighted
• THD at 1 kHz: <0,001% MM, < 0,005% MC
• THD (20Hz-20kHz): <0,008% MM, < 0,01% MC
• RIAA-equalization curve accuracy: <0,3dB / 20Hz - 20kHz
• Subsonic filter: at 20Hz with 18dB/octave
• Input: 1x 5-pin mini XLR / 1x pair RCA phono sockets
• Line-level output: 1x pair RCA, 1x pair XLR
• Power supply DC: 18V/500mA
• Power consumption: 18V/170mA DC, <0.5 W in standby
• Dimensions: 206 x 55 x 153 (164 with sockets) mm
• Weight: 930g without power supply
