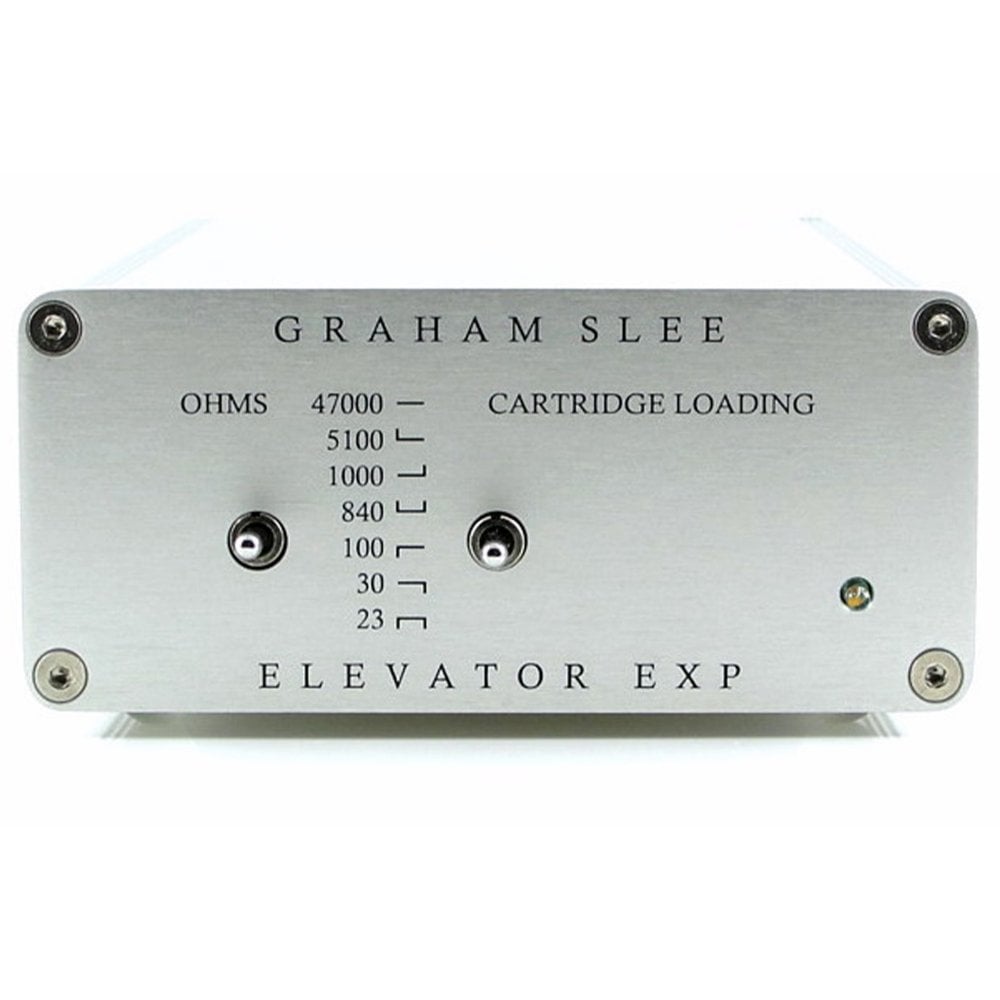

Graham Slee Elevator EXP MC Step Up Device

The Elevator EXP will give you hum-free sound, purer bass, greater definition and much more of your music.

The Elevator EXP is supplied with the PSU1 power supply, and a choice of voltages and power plugs.

Please Note: Only suitable with a low output moving coil (MC) with output in the region of 0.15 - 0.8 mV (ref 1kHz at 5cm/sec).

The Elevator EXP must always be used between cartridge and a moving magnet sensitivity input. It must never be used 'post EQ' - after the moving magnet phono preamp.

Technical Specifications:

• Input range: 0.15mV to 0.8mV
• Output (for input range): 2mV to 10mV, suitable for a moving magnet phono stage input
• Maximum input: 378mV rms (a very large overload margin)
• Maximum output: 4.914V rms
• Gain: 22dB (13) < 10Hz to 917kHz (-3dB points)
• Input impedance: 23, 30, 100, 840, 1000, 5100 and 47000 Ohms
• Output (driving/source) impedance: 300 Ohm
• Recommended load impedance: 47k Ohms phono stage preamp input
• Noise at output: -99dB CCIR Q-pk
• Distortion: 0.02%
• Frequency response: < 10Hz to 917kHz (-3dB points)
• Channel balance: 0.2dB
• Channel separation: 64dB
• Size (approx.): W: 107 x H: 50 x D: 180 (mm) inc. jacks
