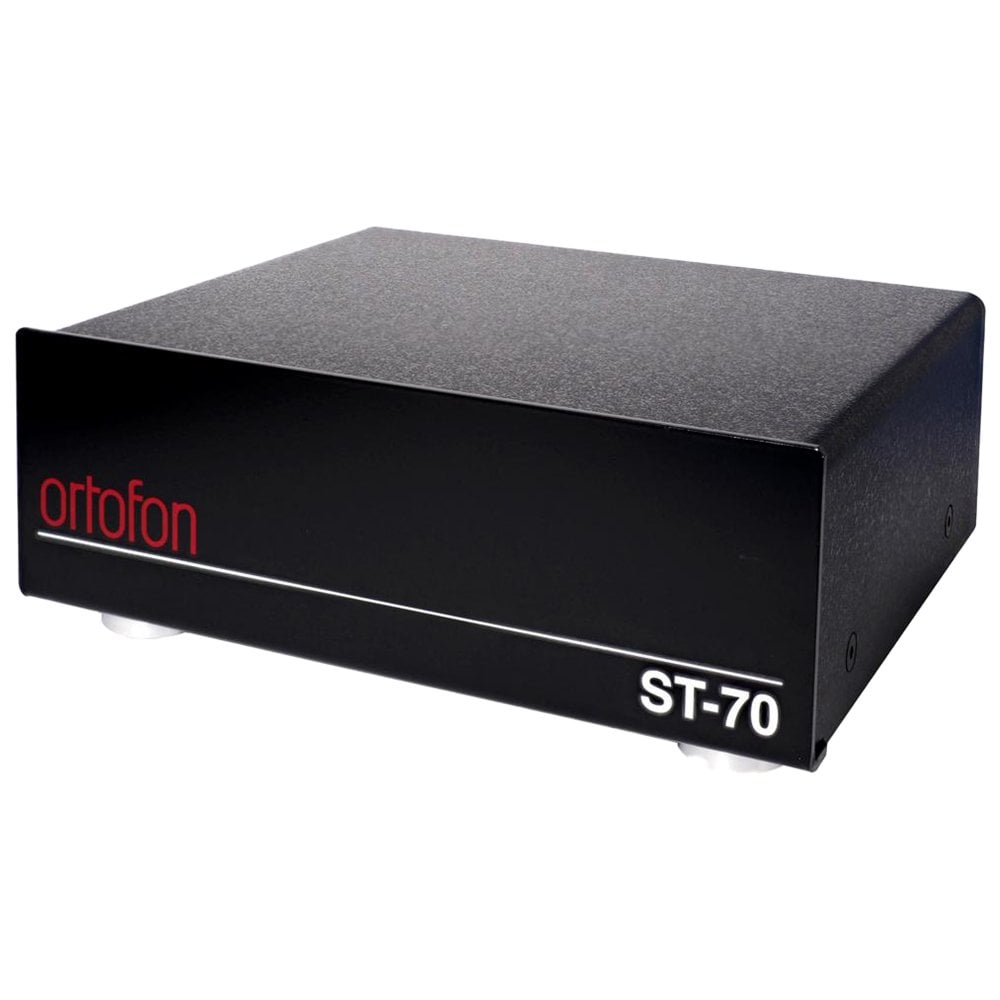

Ortofon ST-70 Transformer

Starting with high quality Lundahl™ transformers, surrounded by a specialized mu-metal shielding, the ST-70 is engineered from the ground-up to ensure that every detail in a complex array of notes is reproduced with utter purity, with freedom from internal and external sources of interference. Elsewhere inside the box, the dual-mono design provides discrete circuitry for each channel, resulting in the elimination of crosstalk and possible distortions.  This results in cleaner, clearer reproduction with substantially increased stereo imaging.  Regardless of the composition being played, the ST-70's expansive stereo separation provides lifelike realism, and accurate tonal balance devoid of coloration.

To further minimize signal degradation and maximize signal flow, the ST-70 has been engineered using a high-quality, industrial-grade PCB.  Additionally, gold plated RCA jacks with Teflon insulation provide optimal conductivity for use with high quality interconnects.

The ST-70 is compatible with a wide range of higher-end Moving Coil cartridges thanks to its two Gain/Impedance options, set using internal jumpers. But for those already using Ortofon Cadenza cartridges, the ST-70 provides the perfect technical and sonic match to the range.

Technical Specifications:

• Dimensions: 122 X 43.5 X 102mm
• Weight: 790g

Configuration A:

• Frequency Response: 10Hz - 100kHz (± 1dB)
• Gain: 24dB at 1kHz
• Recommended Cartridge Impedance: 5Ω - 50Ω
• Recommended Load: 47 kΩ / 200 pF

Configuration B:

• Frequency Response: 10Hz - 80kHz (± 1dB)
• Gain: 30dB at 1kHz
• Recommended Cartridge Impedance: < 10Ω
• Recommended Load: 47 kΩ / 200 pF
