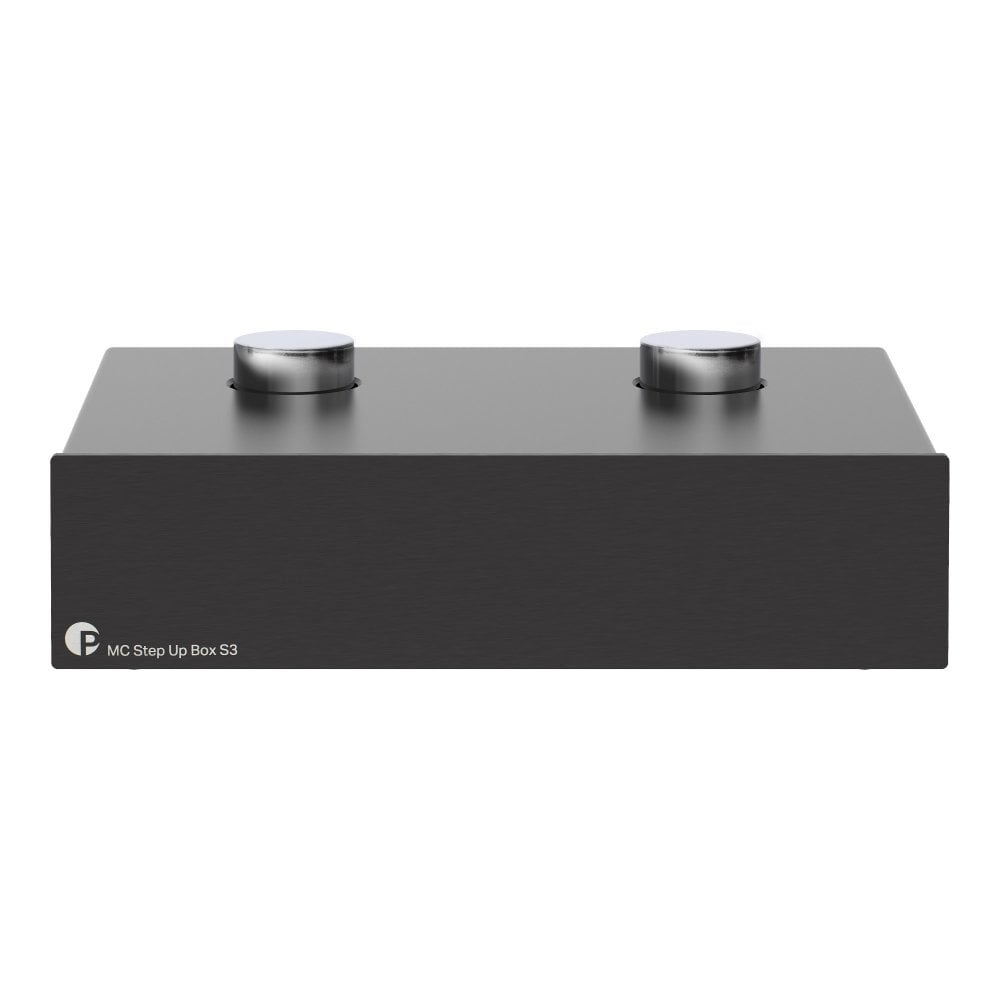

Pro-Ject MC Step Up Box S3

Code: PJAASTEPUPBOXS3
  • £399.00
  • (FREE UK Delivery)
  |   Usually dispatched within 24 hours
Loading...

The output level of MC cartridges is very low, compared to a MM (Moving Magnet) one it is about 10x lower, which means, you need a special phono amplifier. A higher gain is needed to utilize the signals, which can result in a higher noise level and distortion. The MC Step-Up Box S3 is the solution.

Key Features:

  • Sound upgrade for your MC cartridge
  • Fully passive signal path without power supply
  • Superior sound quality
  • 1:16 transformer ratio
  • Transformer with mu metal shielding
  • Input impedance matching 10 or 100 Ohms
  • Dual mono design principle
  • Highest channel separation
  • Gold-plated RCA terminals
  • Solid aluminium casing protects against interference
  • Available in silver or black

The MC Step Up Box S3 works very differently compared to a phono preamplifier. The windings ratio of the transformer determines the gain factor. As it works completely passive and no external power is needed, no extra power can be produced. The increase in voltage is achieved by a corresponding decrease is current.

As there is no amplification, the MC Step Up Box S3 has a remarkable noise performance and a very low level of distortion. The sound with a Step-Up Transformer will be more lively, dynamic and natural.

Designed & handmade in Europe

The new Step Up Box S3 is carefully designed and handmade in Europe. Our goal is to develop a technically flawless device in a housing that is only as big as necessary to safe raw materials. Due to the timeless design & rigid aluminium casework, the MC Step Up Box S3 is built for eternity. With high-quality materials and components, but also well-thought-out design, we want to be a pioneer in the industry.

Phono Preamplifier Specifications:
Audio Inputs1x pair RCA phono sockets
Audio Outputs1x pair RCA phono sockets
GainAt 10-40 Ohm: 21dB at 1kHz
at 40-150 Ohm: 24dB at 1kHz
Frequency range10Hz - 55kHz: +/- 1dB
Recommended Load47 kOhm / 100pF
Weight940g
Dimensions (HxWxD)65 x 206 x 153mm (164mm with sockets)
