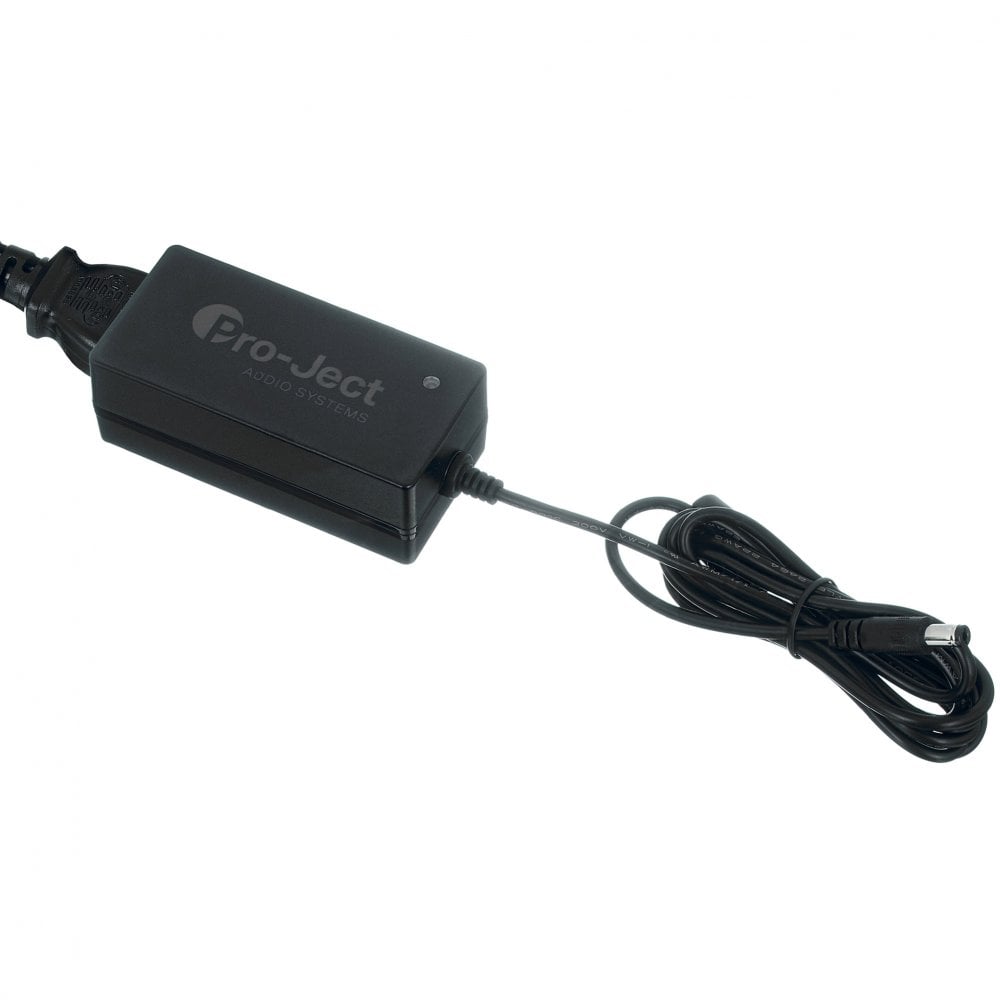

The High Power-IT 2 is a three pin power supply with a ground connection for Pro-Ject turntables. It gets rid of ground related hum problems, especially occurring with amplifiers that have no real ground connection.
Key Features:
- 3 pin DC with ground connection
- Proper grounding for your turntable
- Dramatically reduces grounding hum
- Solution for floating mass systems
- Delivers cleaner current & power
- Compatible with 15V DC Pro-Ject turntables
If a turntable is not properly grounded, it may have a different ground reference to the connected amplifier. Consequently, these potential differences induce a compensating current which can be heard as a hum. Many modern amps, especially those used in sound bars and streaming speakers (but also found across a wide variety of hi-fi separates), have no ground connection and can therefore experience this problem. These systems are called, in technical terms, "floating mass systems". If a standard turntable is connected to such a "floating mass" amplifier, then and audible hum can be the result.
Technical Specifications:
- Output: 15V DC, 1.5A
- Input: 100-240V AC, 1.1A, 47-63Hz
- Diameter DC Plug: 2.1 mm
- Dimensions: 92 x 45 x 32 mm
- Weight: 140g (Without Power Cord)
